    Ec Brushless Cooling Fan Ac 110V 115V 120V 220V 240V Axial Fan Ball Beari Ec Brushless Cooling Fan Ac 110V 115V 120V 220V 240V Axial Fan Ball Beari

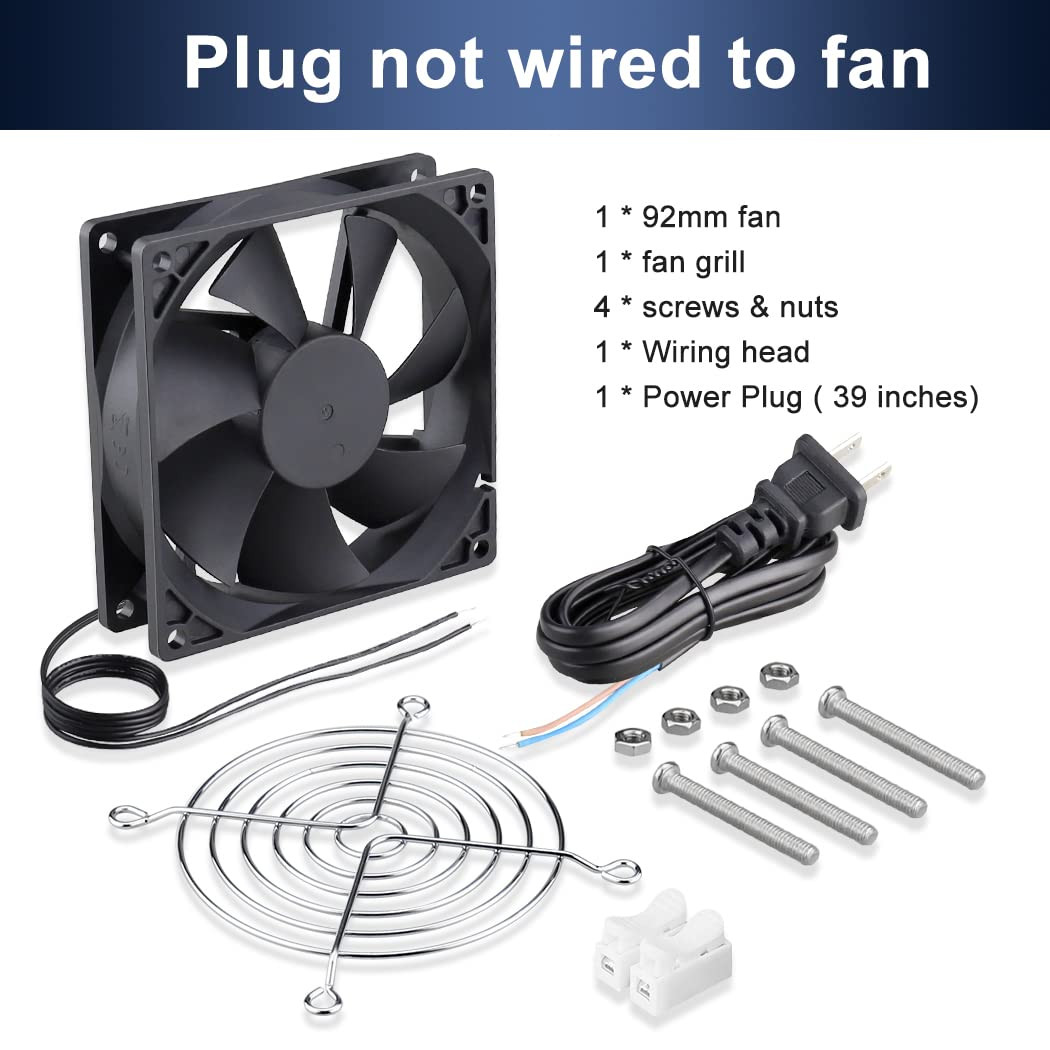

• This EC axial fan consume very less power & better efficiency than AC equivalent.Package include: 1 Piece fan include fan grill and mounting screws & nuts; 2* leadwires（about 38 inches); 1* Power Plug
• Designed for projects that requires cooling or ventilation; or as a replacement fan for various products.
• Dual-ball bearings have a lifespan of 67,000 hours and allows the fans to be laid flat or stand upright
• Warranty: One-year quality assurance. Please contact us If the product has any quality problems, it will be replaced within one year.
• 92 x 92 x 25 mm ( 3.62 x 3.62 x 1 in. ) | Rated Voltage :90V to 270V | Airflow: 54.8 ±10%CFM | Power: 2.0W | Speed: 2400 RPM

Product Description EC Fan What is EC technology?

• EC stands for Electronically Commutated, and it combines AC and DC voltages bringing the best of both worlds; the motor runs on a DC voltage, but with a normal AC supply.
• EC motors have several benefits. Because EC motors have no brushes, they do not spark or have a short life due to brushes. Other advantages include the fact that they do not waste power because the electronics control the stator; they provide better performance and controllability, and they run cooler than induction motors; In terms of size, small motors can achieve the same output as traditional DC or AC motors.
• Power distribution is much cleaner with an EC motor. Brushless DC motors depend on a separate DC power supply. And an AC motor’s power supply usually adds extra cost and complexity.
• EC motors can connect directly to AC main power supply with their integrated electronics. They do not completely depend on voltage or frequency; hence, small changes in voltage do not affect motor output.

Durable plastic material

• The EC fan work in the 70V - 270V voltage range, such as work under on 110V, 120V, 220V, 240V ,the fan speed are the same.Designed for Computer PC Case Cooling , DIY Cooling Ventilation Exhaust Projects, Other Places Cooling ,Electronic Equipment Cooling.

Dual-Ball Motors

• Dual-ball bearings rated at up to 67,000 hours allows the fans to be mounted flat or upright.

Fan Filter

• Protect your fingers, and keep fan blade without damage ; wear-resistant and not easy to break.

Components

• Plug ：The power plug needs to be connected to the fan cable, and then into it a wall outlet to start the fan . 59 inch.
• Wiring head ：Connect fan cable and extension cable.

Size 60 x 60 x 25 mm 80 x 80 x 25 mm 92 x 92 x 25 mm 120 x 120 x 25 mm 120 x 120 x 38 mm 120x120x32mm Size 2.36 x 2.36 x 0.98 in 3.14 x 3.14 x 1 in 3.62 x 3.62 x 1 in 4.72 x 4.72 x 1 in 4.72 x 4.72 x 1.5 4.72 x 4.72 x 1.25 Rated Voltage 90-270V 90-270V 90-270V 90-270V 90-270V 90-270V Speed 4800 ±10%RPM 2800 ±10%RPM 2400 ±10%RPM 2700 ±10%RPM 2800 ±10%RPM 2200 ±10%RPM Air Flow 24.8 ±10%CFM 43.6 ±10%CFM 54.8 ±10%CFM 88.2 ±10%CFM 116 ±10%CFM 24.6 ±10%CFM Noise 35±10%dBA 31±10%dBA 31±10%dBA 37±10%dBA 41±10%dBA 42±10%dBA Power 1.5 Watt 2.0 Watt 2.0 Watt 3.0 Watt 6.0 Watt 4.0 Watt Size 60x60x25mm 80x80x25mm 92x92x25mm 120x120x25mm 120x120x38mm Rated Voltage/Current 12V / 0.2A 12V / 0.2A 12V / 0.16A 12V / 0.15A 12V / 0.5A Speed 4500RPM 2800RPM 2500RPM 2000RPM 2800RPM Air flow 22.7CFM 43.6CFM 54.8CFM 66.7CFM 118CFM Noise 36dBA 31dBA 31dBA 28dBA 42dBA
Item model number EC9225B110-240V Product Dimensions 3.62 x 3.62 x 0.98 inches; 2.68 Ounces Country of Origin China Style 92x25mm

Product Dimensions: 3.62 inches x 3.62 inches x 0.98 inches. Weight: 2.68 oz About Us
